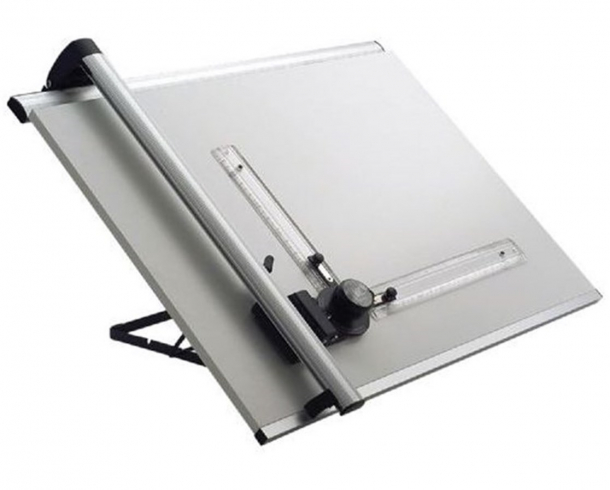

Alvin TOM Drafting Machine
Includes two sets of Plexiglas scales
The Alvin TOM Drafting Machine is a functional track-type drafting machine. It is mounted on a modern and compact drawing board and features a precision ball-bearing, vertical sliding track drafting system. The vertical sliding track is equipped with a locking brake lever that allows three different positions: a locked position for a non-moving drawing head, a braking friction position to prevent the drawing head from slipping, and an unlocked position for a free-moving drawing head.
This drafting machine is supplied with a 150-degree double-hinged drawing head that includes two Plexiglas scales, one set is in meters and the other is in full and half-inch graduations. It offers a maximum work surface area of 19. Its adjustable stand provides versatility with its three angles of inclination including 0-degree, 30-degree, and 60-degree.
For additional functionality, the Alvin TOM Drafting Machine can be used along with CAD furniture setup. It also comes with a carrying case to protect this equipment and ensure convenient handling and total portability. It has overall dimensions of approximately 27 W, which includes the two vertical sliding bars. The complete system weighs 20 pounds.
